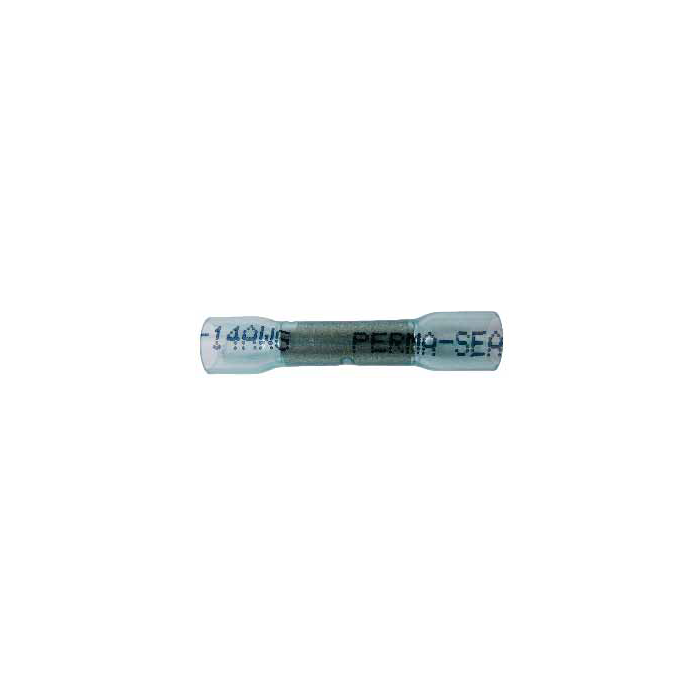

Prolec Butt Connector #16-14AWG Heat Shrink Insulation (5 pieces)
Special Price
$8.43
Regular Price
$8.60
In stock
SKU
19164-0044
Prolec Butt Connector #16-14AWG Heat Shrink Insulation (5 pieces) is available to buy in increments of 1
Prolec Butt Connector #16-14AWG Heat Shrink Insulation
Prolec Butt Connector #16-14AWG Heat Shrink Insulation
Part Number
19164-0044
Description
Butt Splice
Wire Size (mm ) 2
1.23 to 1.94
Wire (AWG)
#16-14
Voltage: Maximum 600V
Barrel Type: Closed
Insulation: NiAc™
Material Metal: Copper
Material Plating - Mating & Termination: Tin
Temperature Range - Operating: -55°C to +125°C
Wire Insulation Diameter: 5.97mm max.
Pack Size: 10, 50, 100, 500
Prolec Butt Connectors with Heat Shrink Insulation – BUTT CONNECTOR 16-14 GA, BLUE
Features
- Rugged, environmentally sealed connection
- Insulates, seals and protects joints from physical abuse and abrasion
- Protects against water, salt and other corrosive compounds
- Installation: insert both cables and crimp, then apply heat to seal
Specifications
| Part Number | 19164-0044 |
|---|---|
| Description | BUTT CONNECTOR 16-14 GA, BLUE |
| Voltage | Maximum 600V |
| Barrel Type | Closed |
| Plating (Mating & Termination) | Tin |
| Material | Copper |
| Insulation | NiAc™ |
| Operating Temperature | -55°C to +125°C |
| Wire Insulation Diameter | 5.97mm max |
| Manufacturer | Prolec |
|---|
