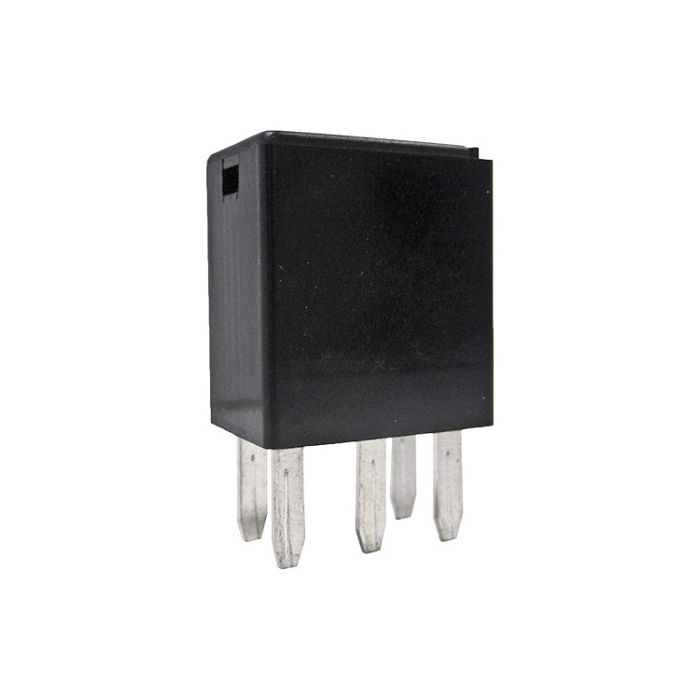

Song Chuan 3011CCR112 Changeover Micro Relay SPDT 35A/20A 5Pin 12VDC
Special Price
$9.30
Regular Price
$9.49
In stock
SKU
3011CCR112
Song Chuan 3011CCR112 Changeover Micro Relay SPDT 35A/20A 5Pin 12VDC is available to buy in increments of 1
Changeover Micro Relay SPDT 35A/20A 5Pin 12VDC
Song Chuan 301 ISO280 Micro Relays SPDT 12V or 24VDC – MICRO RELAY 280 SPDT 12VDC 35A/20A 5 PIN RESISTOR PROTECTION
Features
- Sealed washable enclosure
- Dust cover enclosure option
- Diode protection option
- Suits power distribution modules
- RoHS approved
Specifications
| Part Number | 3011CCR112 |
|---|---|
| Description | MICRO RELAY 280 SPDT 12VDC 35A/20A 5 PIN RESISTOR PROTECTION |
| Contact Rating (Motor/Lamp) N/O | 16A (14VDC), In-rush 80A |
| Coil Current | 80mA (12V), 40mA (24V) |
| Coil Current (3031AHCR1 Series) | 97.5mA (12V), 49.6mA (24V) |
| Coil Resistance | 150Ω (12V), 600Ω (24V) |
| Contact Voltage Drop | Typ. 50mV at 10A |
| Contact Material | Silver Tin Oxide (AgSnO alloy) |
| Mechanical Life Expectancy | 10 million operations |
| Enclosure | Flux tight seal |
| Temperature | -40 to +125°C |
| Voltage | 12V, 24V |
| N/O Ampere Rating (3011 Series) | 35A (12V), 15A (24V) |
| N/C Ampere Rating (SPDT, 3011 Series) | 20A (12V), 10A (24V) |
| Contact Action | SPST, SPDT |
| Terminals | 4 x 2.8mm (SPST), 5 x 2.8mm (SPDT) |
| Bracket | No |
| Approval | ELV-2000/53/EC, RoHS |
| Manufacturer | Song Chuan |
|---|---|
| Barcode | 9347729003259 |
