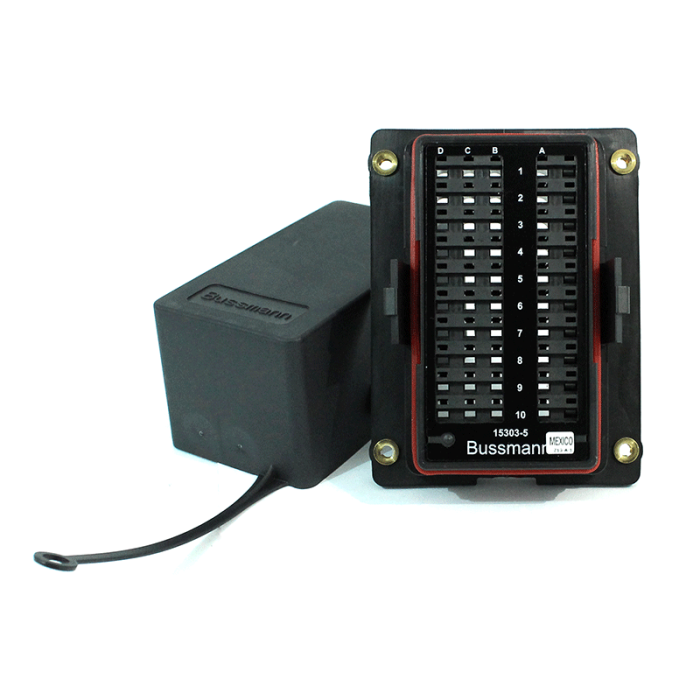

Bussmann 15303-5-6-4 RTMR 15300 Series Rear Terminal Mini Fuse and Relay Panel (Fuses Bussed)

Special Price $99.00 Regular Price $104.20
In stock
SKU
15303-5-6-4
Bussmann 15303-5-6-4 RTMR 15300 Series Rear Terminal Mini Fuse and Relay Panel (Fuses Bussed) is available to buy in increments of 1

Bussmann RTMR 15300 Series Rear Terminal Mini Fuse and Relay Panel (Fuses Bussed)

Bussmann 15303-5-6-4 RTMR 15300 Series Rear Terminal Mini Fuse and Relay Panel (Fuses Bussed)

Part number: 15303-5-6-4

3 x Mini relay or 5 x micro relay and 10 x Mini fuse / circuit breaker.

Fuse Bussed.

Relay No Bussing.

Suits ISO 280 Relays only.

Catalog Number Series 15300 RTMR
Input Terminal Rating M6 input studs on bussed/partially bussed inputs: 80A max input on bussed fuse side, 80A max input on bussed relay side.
Output Terminal Rating 2.8mm blade terminals (30A max per terminal)
Temperature Rating -40°C (-40°F) to 125°C (260°F) (rating on PDM only)
Materials Black thermoplastic housing; Tin-plated copper internal bussing; Bright nickel-plated brass studs (on bussed versions)
Termination Delphi Packard Metri-Pack® 280 Series terminals (sealed/tangless) or AMP® terminals.* Delphi Packard 280 Series cavity plugs are installed where wires are not used.* Accepts #12-22 AWG wire sizes.
Torque Rating 50 in-lbs (5.5N•m) max.
Mounting Torque Rating #10-32 or M5 threaded inserts; 24 in-lbs (2.7N•m) max torque.
Ingress Protection Rating IP66-IEC 60529 (Valid when properly installed with cover, sealed terminals, and cavity plugs.)
