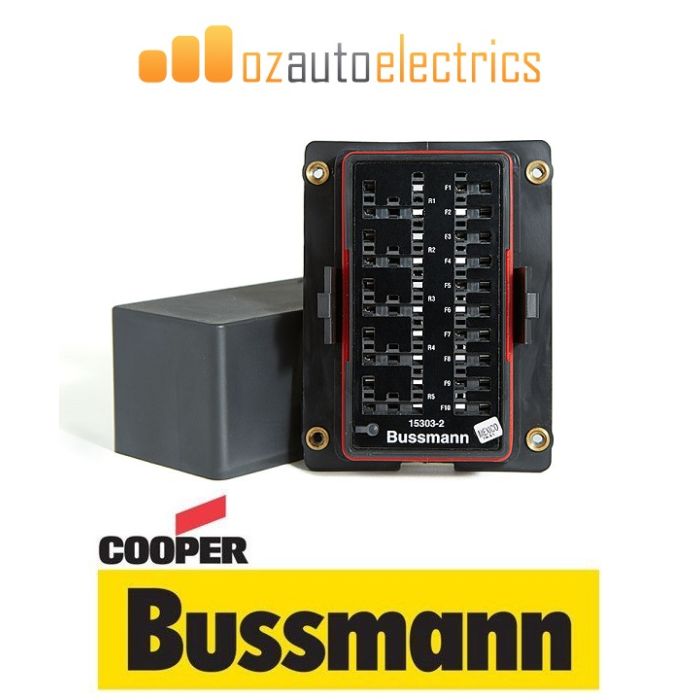

Bussmann 15303-6-6-4 RTMR 15300 Series Rear Terminal Mini Fuse and Relay Box (Single Bussed on Relays)

$123.20
In stock
SKU
15303-6-6-4
Bussmann 15303-6-6-4 RTMR 15300 Series Rear Terminal Mini Fuse and Relay Box (Single Bussed on Relays) is available to buy in increments of 1

Bussmann 15303-6-6-4 RTMR 15300 Series Rear Terminal Mini Fuse and Relay Box (Single Bussed on Relays)

Bussmann RTMR 15300 Series Rear Terminal Mini Fuse and Relay Box (Single Bussed on Relays)

Part Number: 15303-6-6-4

3 x Mini relay or 5 x micro relay and 10 x Mini fuse / circuit breaker.

Relay Bussing only *Input stud bussed to pin 86 on relay.

The Rear Terminal Mini Fuse and Relay panel (RTMR) is designed to provide efficient power distribution in a rugged compact form, suitable for applications in marine, construction, agriculture, heavy trucking, and specialty vehicle industries.

Components: Accepts Minifuses, Mini bladed circuit breakers, ISO 280 Mini & Micro relays, ISO 280 Diodes and ISO 280 Flashers. All components must have 2.8mm blades on 8.1mm centerline spacing.
Mounting: Threaded inserts #10-32 as standard (M5 optional).
Block & Cover: Black thermoplastic, improved cover latch design featuring tether. Silicone seal.
Internal Buss: Tin-plated copper (if applicable)
Buss Input Studs: M6 stud (for bussed versions only).
Buss Input Stud Rating: 80A max.
Output Terminal Rating: 30A max per terminal.
Cover Options: Shallow cover (fuses only) or Deep cover (fuses / relays / circuit breakers).
Ingress Protection Rating: IP66-IEC 60529 (Valid when properly installed with cover, cable seals and cavity plugs).
Wire Size: #22 - #12 AWG / 0.35mm² - 3mm²
Accessories: Delphi Metri-Pack 280 series.
Cavity Plugs: Required to fill unused output cavities for ingress protection.
Cable Seals: Please check the overall diameter of your cable before ordering cable seals.
Terminal Tools: Terminal crimping & removal tools see page138.
Pack Size: Stocked lines 1pc
Temperature Rating: -40°C to +125°C (PDM only)

Ordering: Block is supplied with tethered cover. Bussed versions also include one nut and one silicone stud cap for each buss input stud.
Not Included: Fuses, circuit breakers, relays, terminals, cable seals, cavity plugs & brackets are optional extras.
