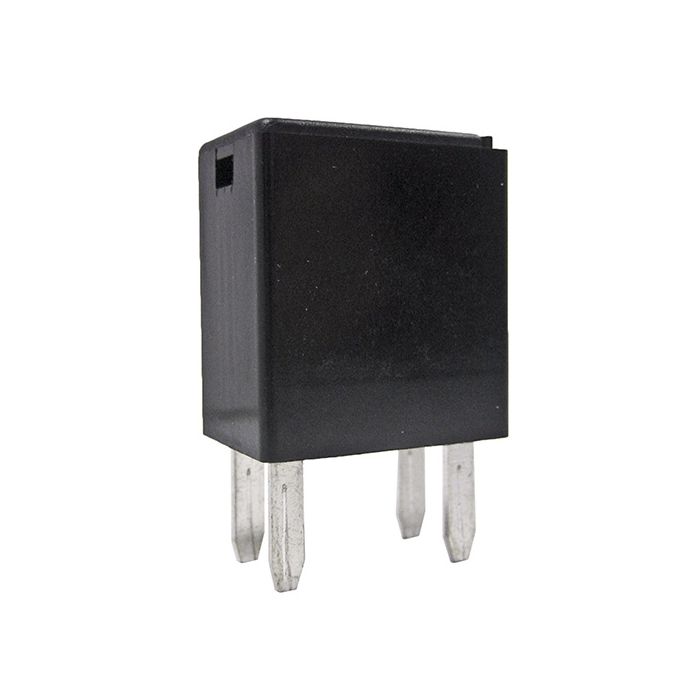

Song Chuan 3011ACR112 12V Micro Normally Open Relay 35A 4 Pin 2.8mm Pins SPST

Special Price $6.70 Regular Price $6.82
In stock
SKU
3011ACR112
Song Chuan 3011ACR112 12V Micro Normally Open Relay 35A 4 Pin 2.8mm Pins SPST is available to buy in increments of 1

Song Chuan 12V Micro Normally Open Relay 35A 4 Pin 2.8mm Pins SPST

Song Chuan 12V Micro Normally Open Relay 35A 4 Pin 2.8mm Pins SPST

Coil Current: 97.5mA (12V), 49.6mA (24V)
Coil Resistance: 123Ω (12V), 483Ω (24V)
Contact Voltage Drop: Typ. 40mV at 10A
Contact Material: Silver Tin Oxide alloy (AgSno)
Operate / Release Time: 10ms max. / 10ms max.
Enclosure: flux tight seal.
Temperature: -40 to +125°C (no freezing)
Mechanical Life Expectancy: 10 million operations.
Pack Size: 1
Options: Sealed washable / Dust cover enclosure. Diode protection.

More Information
Manufacturer Song Chuan
Barcode 9347729003242
