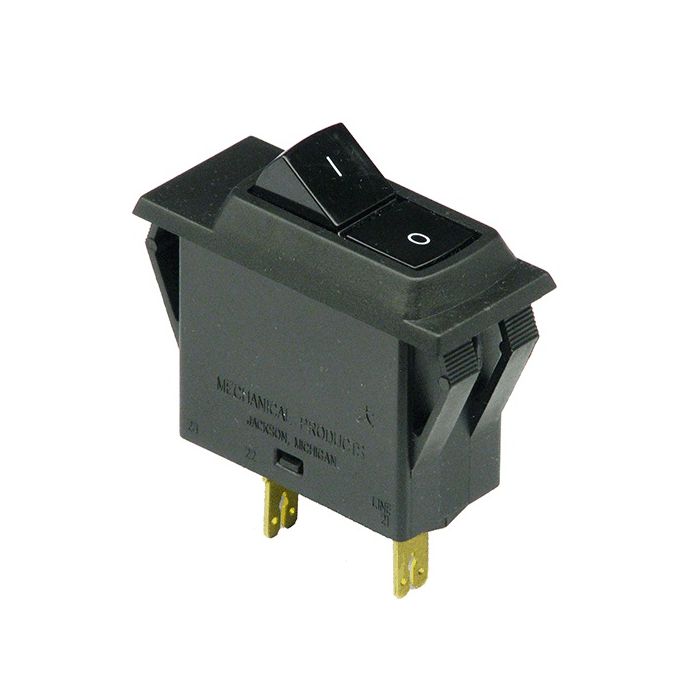

Mechanical Products 2410-100-159-050 5A Circuit Breaker Switch Panel Mount Series 24
Special Price
$13.80
Regular Price
$14.08
In stock
SKU
2410-100-159-050
Mechanical Products 2410-100-159-050 5A Circuit Breaker Switch Panel Mount Series 24 is available to buy in increments of 1
Mechanical Products 2410-100-159-050 5A Circuit Breaker Switch Panel Mount Series 24
Mechanical Products 2410-100-159-050 5A Circuit Breaker Switch Panel Mount Series 24
Voltage: 250VAC / 50VDC Max.
Short Circuit Rating (IEC):
2.5A to 20A: 150A (1 pole).
Reset Mechanism: Type III, Manual Reset
Dielectric Strength: 2000V (IEC)
Terminals: 2.8mm/6.3mm combination Q.C.
Operating Temp: - 0°C to °C 3 60
Pack Size: Stocked items 1pc.
Notes: *Red illuminated switch features an
incandescent light which requires 10 to 14VDC to
operate. Lamp current draw is 38mA at 12VDC.
Mechanical Products Series 24 Switch/Breaker (2410-100) – CIRCUIT BREAKER 5A 250VAC/50VDC PANEL MOUNT MANUAL RESET QUICK CONNECT
Features
- Rocker style, switchable circuit breaker offering trip-free protection
- Switch function (Power On/Off) is independent of the trip function (Overload Protection)
- Designed for compact, snap-in panel mount applications
- Available as switch, circuit breaker, or combined switch/breaker; one or two pole
- Quick connect or screw terminations; with or without illumination
Specifications
| Part Number | 2410-100-159-050 |
|---|---|
| Description | CIRCUIT BREAKER 5A 250VAC/50VDC PANEL MOUNT MANUAL RESET QUICK CONNECT |
| Ampere Rating | 5A, 10A, 15A, 20A, 25A, 30A |
| Current Range | 100mA to 30A |
| Voltage | 250VAC / 50VDC Max |
| Single Pole Breaker Voltage | 50VDC (TIII-PTT) |
| Short Circuit Rating (IEC) | 2.5A to 20A: 150A (1 pole) |
| Reset Mechanism | Type III, Manual Reset Switchable |
| Dielectric Strength | 2000V (IEC) |
| Terminals (Combination) | 2 x 2.8mm or 6.3mm Q.C |
| Operating Temp | 0°C to 60°C |
| Ingress Protection | IP00 for the terminal area, per IEC 529/DIN 40050; IP40 for the operating area; IP54 with splash protection |
| Approvals | UL 1077 recognised certified (0.5A to 20A); UL 1500 Ignition Protection |
| Panel Cutout | 50.5 x 21.6mm (Standard); 44.5 x 21.6mm (Optional) |
| Lamp Requirement (Red Illuminated Switch) | 10 to 14VDC; 38mA at 12VDC |
| Manufacturer | Mechanical Products |
|---|
