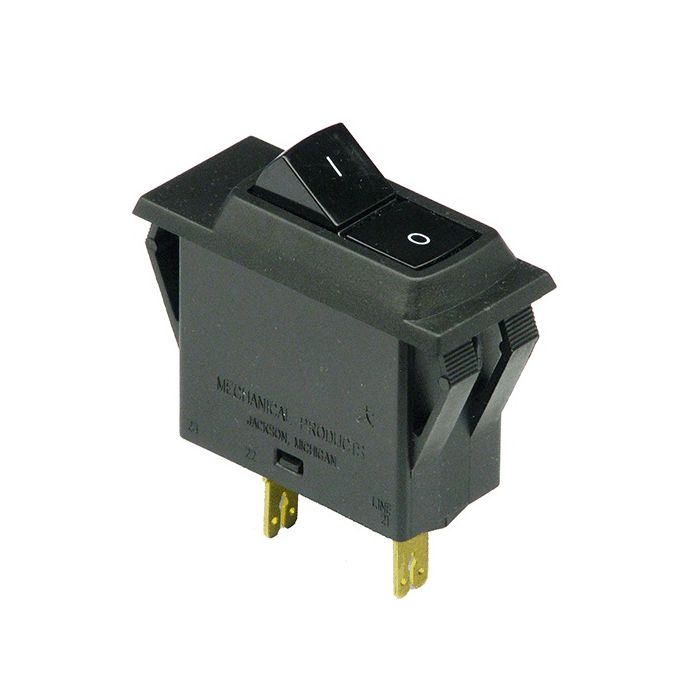

Mechanical Products 2410-100-159-300 30A Circuit Breaker Switch Panel Mount Series 24

Special Price $21.00 Regular Price $22.00
In stock
SKU
2410-100-159-300
Mechanical Products 2410-100-159-300 30A Circuit Breaker Switch Panel Mount Series 24 is available to buy in increments of 1

Mechanical Products 2410-100-159-300 30A Circuit Breaker Switch Panel Mount Series 24

Mechanical Products 2410-100-159-300 30A Circuit Breaker Switch Panel Mount Series 24

Voltage: 250VAC / 50VDC Max.
Short Circuit Rating (IEC):
2.5A to 20A: 150A (1 pole).
Reset Mechanism: Type III, Manual Reset
Dielectric Strength: 2000V (IEC)
Terminals: 2.8mm/6.3mm combination Q.C.
Operating Temp: - 0°C to °C 3 60
Pack Size: Stocked items 1pc.
Notes: *Red illuminated switch features an
incandescent light which requires 10 to 14VDC to
operate. Lamp current draw is 38mA at 12VDC.

More Information
Manufacturer Mechanical Products
