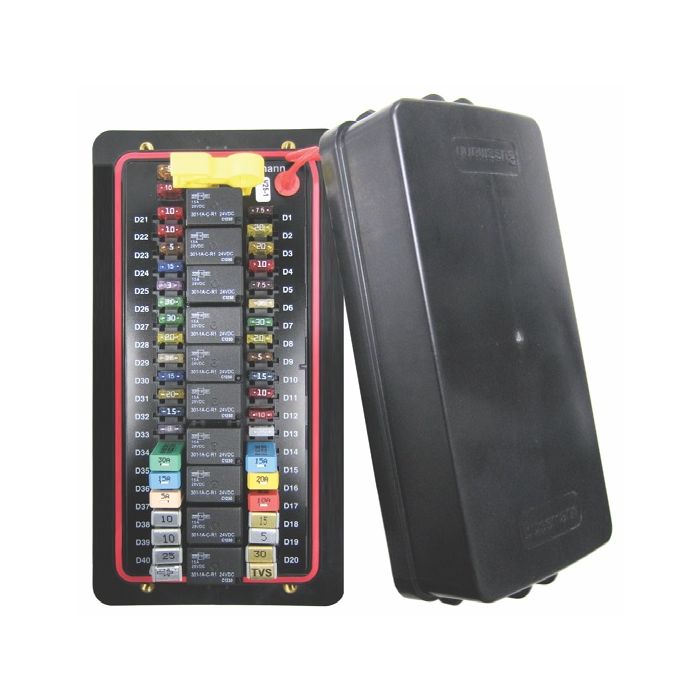

Bussmann 15401-1-2-1-0A ISO280 Micro Relay and Mini Fuse Holder (Dual Bussed)

Designed to provide efficient power distribution in a rugged compact form with applications in marine, construction, agriculture, heavy trucking, and specialty vehicle industries. It accommodates a combination of up to 40 x Minifuse or Mini Blade Breakers and 10 x ISO 280 Micro relays. Also features a slot to hold a fuse puller and 4 slots for spare fuses.

• Voltage Rating: 12 / 24VDC
• Ampere Rating: 200A max.

Components:

• Accepts Minifuses, Mini bladed circuit breakers, ISO 280 Micro relays and ISO 280 Flashers. All components must have 2.8mm blades on 8.1mm centerline spacing.
• Mounting: Threaded inserts #10-32 as standard (M5 optional).
• Intended for horizontal to vertical mounting orientations.
• Block & Cover: Black UL-Rated 94V0 thermoplastic, Silicone rubber gasket. Deep cover with internal tether.
• Cover Options: Replacement covers also available.
• Deep cover only (fuses / relays / circuit breakers)
• Internal Buss: Plated copper (optional, feeds fuses only)
• Buss Input Studs: M8 x 1.25 stud (on bussed versions).
• Buss Input Stud Rating: 100A max per bus bar
• Output Terminal Rating: 30A max per terminal.
• Ingress Protection Rating: IP66 (Valid when properly installed with cover, cable seals and cavity plugs).

Accessories:

• Delphi Metri-Pack 280 series. Wire Size: #22 - #12 AWG / 0.35mm² - 3mm²
• Fuse puller #32013BS.
• Cavity Plugs: required to fill unused output cavities for ingress protection.
• Cable Seals: Please check the overall diameter of your cable before ordering cable seals.
• Terminal Tools: Terminal crimping & removal tools see page138

Temperature Rating: -40°C to +85°C (Module only)
Ordering: Block is supplied with cover & one nut for each input stud.
Not Included: Fuses, circuit breakers, relays, terminals, cable seals, cavity plugs & fuse puller are optional extras. (See related parts)
