Littelfuse HWB18 Series 18 Position Power Distribution Module

Special Price $47.30 Regular Price $48.53
In stock
SKU
PDM31001ZXM
Littelfuse HWB18 Series 18 Position Power Distribution Module is available to buy in increments of 1

Littelfuse HWB18 Series 18 Position Power Distribution Module

Littelfuse HWB18 Series 18 Position Power Distribution Module

The Littelfuse HWB18 series is an 18 position power distribution module provides a compact, durable and sealed power distribution solution for the transportation market. This unit is designed for 280 style components such as mini blade fuses, circuit breakers, relays , diodes etc. with 2.8mm blades on 8.1mm centerline spacing.

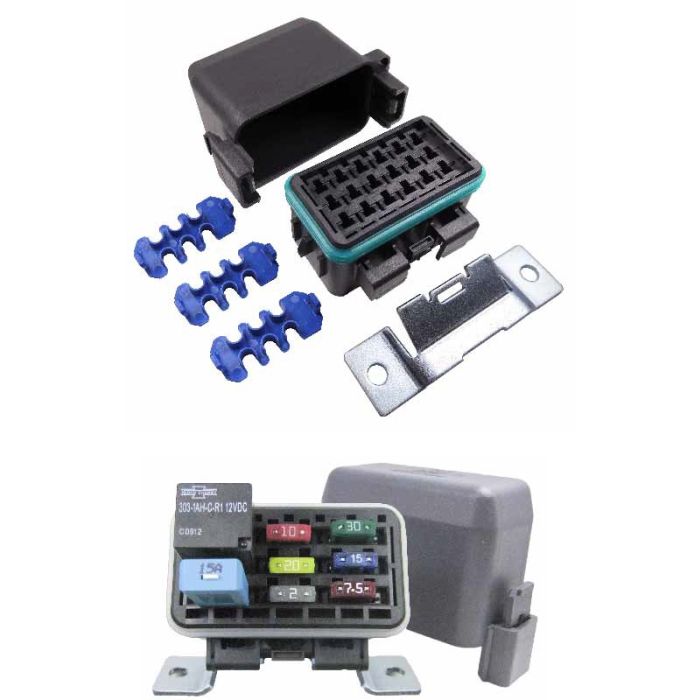

Module Contents: Module includes cover, base, cover seal, mounting bracket and 3 secondary terminal locks (TPA’s).
Terminal Capacity: 18 terminals on a layout matrix of (3 x 6).
Terminal Rating: 30A max per terminal.
Maximum Fuse Size: 30A
Temperature Rating: -40°C to +85°C.
Body & Cover: UL 94V-0 glass filled thermoplastic.
Cover Seal: Silicone.
Mounting Bracket: Plated steel (angled).
Ingress Protection Rating: IP67 when cover, cable seals and cavity plugs are installed.
Wire Size: #22 - #10 AWG (0.35 to 5mm2).
Cavity Plug: required to fill unused output cavities for ingress protection. (not inc)
Cable Seals: Please check the overall diameter of your cable before ordering cable seals. (not inc)
Terminal Tools: Terminal crimping & removal tools (not inc)
Accessory Components: Terminals, cable seals, cavity plugs, mini fuses, mini blade circuit breakers, ISO 280 relays. (not inc)
Pack Size: 1
