Littelfuse PDMKIT211 Littlefuse HWB60 Series Power Distribution Kit with Module, Loose Terminals and Cable Seals

Special Price $154.00 Regular Price $164.84
In stock
SKU
PDMKIT211
Littelfuse PDMKIT211 Littlefuse HWB60 Series Power Distribution Kit with Module, Loose Terminals and Cable Seals is available to buy in increments of 1

Littlefuse HWB60 Series Power Distribution Kit with Module, Loose Terminals and Cable Seals

Littlefuse HWB60 Series Power Distribution Kit with Module, Loose Terminals and Cable Seals

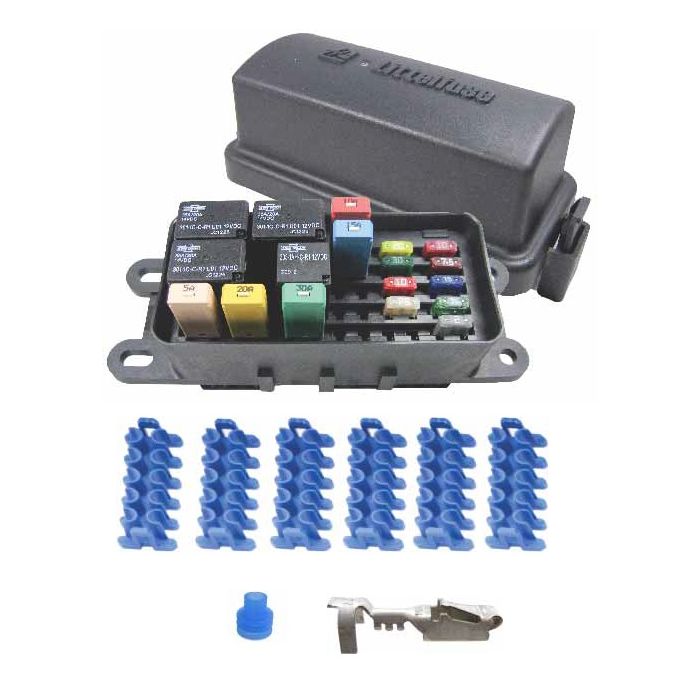

Kit includes:

  • Module with Cover and 6 x Secondary Terminals Locks
  • 60 x 15324980 Cable Seals
  • 60 x 12129493 Terminals
  • 10 x 12010300 Cavity Plugs

Module Contents: Module includes cover with seal, base and 6 secondary terminal locks (TPA’s).
Terminal Capacity: 60 terminals on a layout matrix of (5 x 12).
Terminal Rating: 30A max per terminal.
Maximum Fuse Size: 30A
Wire Size: #22 - #10 AWG (0.35 to 5mm ). 2
Temperature Rating: -40°C to +85°C.
Base & Cover: UL 94V-0 glass filled thermoplastic.
Gasket: Silicone.
Base Features: internal storage for 8 spare fuses & terminal position numbering on underside of base.
Mounting: 4 holes for M6 bolts (6 - 8Nm max torque).
Ingress Protection Rating: IP67 when cover, cable seals and cavity plugs are installed.
Cavity Plugs: required to fill unused output cavities for ingress protection.
Cable Seals: Please check the overall diameter of your cable before ordering cable seals.
Terminal Tools: Terminal crimping & removal tools see page 2.
Options: Cover tether, add-on accessory to hold a fuse puller.
Pack Size: 1
Notes: Gang mount feature to interconnect multiple modules side-by-side. Can also interlock with Littelfuse FLEC and Mega Flex fuse block and Midi Flex fuse block.
Fuses and relays are not included.
